Graham Dartmouth: Meshes and You

In Second Life, the British designer Graham Dartmouth is a well-known and experienced expert in the matter of 3D modelling and texturising. Since a long time, he is taking active part in developing and invention of Meshes in SL. Graham shared his knowledge about this vast field of topics in classes at the respected inworld school Builders Brewery. There I also had the opportunity to participate on his introduction lecture "Meshes and You". I consider Graham's presentation for so infomative and easy to understand that I asked Graham for permission to translate it into German. Thanks to Graham's generous permission, I'm able to provide the original English essay here as well.

Deutsche Version

Graham Dartmouth

So what are meshes and how do they vary from sculpties?

Actually, the entire grid is made up from meshes, you can see this if you switch your viewer to wireframe mode (PC: Ctrl + Shift + R, Mac: CMD + Shift + R). Weird looking huh? By the way, it's the same keystrokes to return to normal view.

Everything on the grid (apart from avatars) is made from the basic SL building block, the humble cube. We can stretch it, shrink it, torture it to different shapes (cylinder, torus etc), path cut it, shear it, hollow it and all those other goodies on your build menu. Then you add textures to make the amazing builds we see around us every day. All derived from a simple mesh cube.

Back in 2007, Qarl Linden introduced a new form to the grid, called sculpties which we all now know and most of us love, but back then, it was greeted with much fury and protests about how it will kill off the prim, and all our hard work and time we have invested in making our prim builds will have been wasted. Sculpties did not kill prims, they simply gave us another building tool to work with.

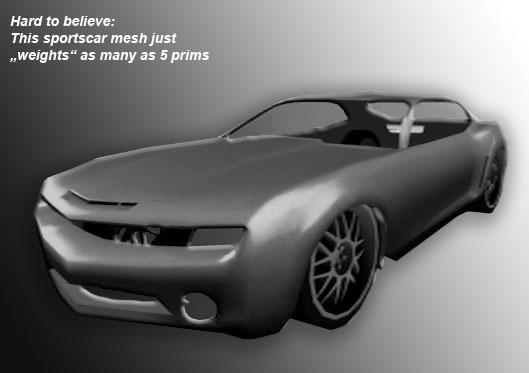

Mesh sportscar

Today, we are hearing much of the same fury and protests about meshes, and I will tell you that meshes are a completely different animal to sculpties, and they will not kill them off. Many of you have been told that sculpties are meshes, and to a point, this is true. Many of us make sculpties in off world mesh modelling programs like Blender, Maya or 3DStudio Max for example. But they all need special plug-ins or scripts to convert them to sculpties. And that is because sculpties are Sculpted Prims, not meshes in the same sense as what is going to be introduced.

A sculpt uses a sculpt map to tell your viewer where to render the surface of that prim so we can now have weird and wonderfully shaped objects too. But it is still the same basic building block: the humble cube. We have all experienced that building block when we suddenly stumble into something that isnít there, but its a close by sculpt which we have to turn to phantom, like in some stairs.

Another thing to remember is sculpts have a very strict set of rules to adhere to as in the number of faces, the shape of the base mesh used to model them and so on. Meshes will remove some of these restrictions for modellers. So, if meshes remove these restrictions, why won't they kill sculpties?

Because, as I said before, they are a completely different animal. They are not sculpted prims. Let me try to explain something:

Meshes are uploaded to the grid in a completely different way, and the server code and viewer code has had to be re-written to enable us to see them. This is some of the fury about Linden Labs 'forcing' us to Viewer 2. They are not forcing us, but the Viewer 1.x code simply cannot handle mesh rendering, so if you want to see meshes, you will have to use a V2 based viewer. Personally I dislike V2, but accept that I am going to have to accept the change, if I want to continue to experience SL to its fullest. But the truth of the matter is that in time, v1 viewers will be antiquated and the code will become less functional. Since the introduction of mesh, Many V1 development teams have managed to back port mesh code into their respective software, so there are now a variety of V1 viewers that can see mesh. A full list of these can be found at http://www.buildersbrewery.com/tpv/.

Just a tech side note here for those interested.. the delay in others catching up is because part of the graphics software used by LL for the render process is proprietary (hence not open-source for other developers) and LL are not allowed to pass this on to the TPV's under the licensing terms.

How "weighty" are meshes for us in SL?

These changes in how things render will affect a sim's capacity for prims. Currently on a full sim, we can have 15000 prims, that wont change. But meshes have a render cost. What does render cost mean?

Apart from the monetary cost of uploading meshes (how many L$ they will cost us) we have to consider what LL terms as "weights". There are 3 weights associated with meshes:

A combination of all of these will determine the Land Impact (LI) cost (Note: The earlier used term "Prim Equivalent" has been disestablished by LL). So this means 1 mesh DOES NOT equal 1 prim. It will depend on the complexity of the mesh, and also other factors like the physics mesh associated with it and the scripting inside the object, and even the scale of the mesh (physical size). However, sculpties will be regarded as a "legacy" prim, meaning that 1 sculpted prim will still have a prim cost of 1.

LL has released the formula, but to be quite honest, it makes my head hurt to look at it. As a designer, you will be informed just before uploading much both the land impact, and the L$ cost will be. This is one major reason why Meshes will not kill off sculpties and prims. Even when objects are composed of many prims and/or sculpties, it must't mean automatically that the same object built of one or just a few meshes may cause less prim equivalent costs.

The key for understanding are polygons. The more complex the shape of the mesh, the worse it gets. Curves are complex to render, since smooth curves need many single vertices. So it is evident that meshes don't provide advantages for all applications.

Of course, if you adjust and optimise your building methods, you can have made your meshes "lighter". This is something else we are all going to have to learn to do if working with meshes. They will require a different approach to sculpties for efficient modelling. Following figure might help to clarify how a remarkable amount of Land Impact can be saved and nonetheless a better result can be achieved:

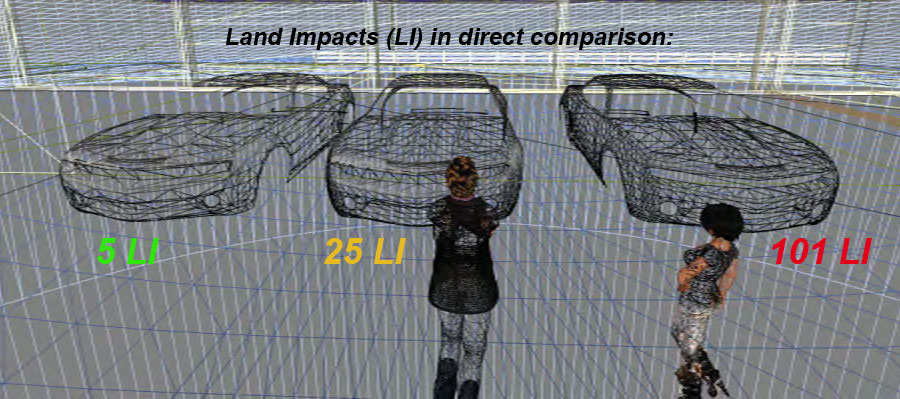

Land Impacts (LI) in direct comparison

After things settle down, and we learn where the niche for meshes is, they will become a valuable addition to our army of building tools. For those considering modelling with meshes, I cannot urge you enough to learn good modelling practices, and economical use of polygons, otherwise you will end up with very heavy meshes that will a) lag the server severely, and b) be unmarketable in SL!

Can anyone make meshes?

If you have the skills and tools just like you need for sculpties the answer is yes. However, not everyone will be able to upload meshes! To upload a mesh to this grid, you will need to have payment info on file, and have completed a short quiz tutorial by Linden Labs on intellectual property rights. There is nothing elitist about this requirement, and is actually being put in place for a very good reason. During the early stages of beta testing, there were some who were ripping material from other games and uploading it. This is against copyrights and can be pursued legally in courts. If LL does not have personal information on who actually did upload these items, the responsibility will lay with them, and leave them liable to legal action. So it is just a measure against cross platform theft or "botting". So donít go scouring the net for "free" mesh models guys, and start uploading them. Even the free ones that are available on the modelling sites usually have a "personal use only" restriction in their Terms of Use, which means you cannot give them away or sell them inside SL. Anyway, there is usually a reason why they are free, they are high polygon crap.

How much will meshes cost to upload?

This is a variable cost based on the Land Impact of the mesh. Currently prices start at 11L$, the most I have paid is 113L$. The more optimised your mesh is for SL, the cheaper it will be. Although 113L$ sounds a lot, that model represented 160 prims in Land Impact. If you consider a sculpt map costs 10L$ to upload (a sculpt will always be 1 prim under the legacy rules), the equivalent cost in sculpts would have been 1600L$!

Will we be able to create meshes inworld?

A number of tools for creating mesh inworld are being developed, with varying degrees of complexity. But it should be remembered that most of these tools will also require some knowledge of an offworld modeling program to optimise them for game use.

This all sounds like doom and gloom, but it is not! There are some advantages to mesh:

Mesh is something new to us in SL, and I feel that their growth will be similar to that of sculpties. When LL released sculpts, they pretty much said "there is the specification guys, go create" and all the tools we now use for sculpting were develope Sculpt Crafter, Prim Oven, Sculpt Studio, also the tools that allow us to use offworld progs, the scripts for Blender, 3DSMax, Maya etc. were developed by SL residents. So it will take a little time for new mesh tools to arrive for inworld use. On the other hand, several offworld programs are suitable for mesh creation without any need for a plugin. My personal choice would be always Blender, but also Google Sketchup is a good tool for beginners. In general, all 3D tool can be chosen which is able to export Collada files.

LL has had them in open beta testing for over a year now, trying to anticipate and avoid foreseeable problems, but we have to remember that the SL game engine is over 10 years old, and they are trying to shoehorn the new technology into it. There are bound to be problems.

A side effect of mesh is we can make megas up to 64 m gridwide, since all regions are now mesh compatible. Auryn Beorn, our beloved resident scripting teacher in the Builder's Brewery, has given us a script to allow non mega supporting viewers to create megas.

Conclusion

I do feel that meshes will be a useful tool for content creation, once we all learn correct and efficient use of them. Recently a student put it very well. She said we have to learn when to mesh and when NOT to mesh! Furthermore I got the impression that they'll probly fix more bugs in the few months after release than in that whole year of beta though - the public seems to be far less tentative with pushing boundaries, and that really is the key to meshes.

© Graham Dartmouth 2012. Last update: May 19, 2012. Revised for publishing by Almut Brunswick by courtesy of the author.
